AFR Systems
Liquid Alternate Fuel Firing Systems

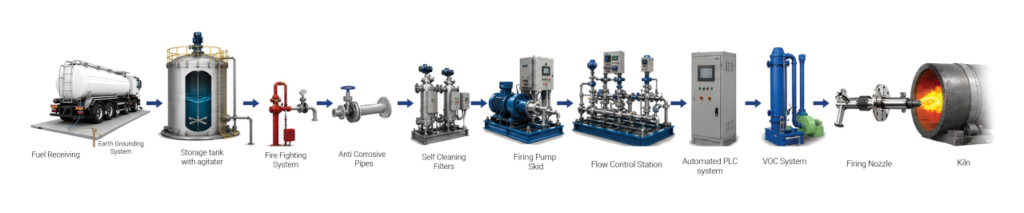

PH1’s Liquid AFR Firing Systems enable cement plants and industries to safely utilize alternative liquid fuels such as waste oils, spent solvents, and chemical residues. These fuels often come with varying viscosities, impurities, corrosive components, and high safety sensitivity. Our integrated LAFR packages — from unloading to filtration to injection — ensure stable combustion, high energy recovery, and full compliance with global safety standards.
Built for 24/7 operation, our systems deliver consistent dosing, flame stability, safe handling, and reduced fossil fuel consumption, helping plants improve their TSR and sustainability footprint.
Types of Liquid Wastes That Can Be Used
- Spent solvents (acetone, toluene, xylene, MEK, IPA, etc.)
- Waste oils & lubricants
- Paint sludge & thinner wastes
- Chemical by-products
- Distillation residues
- High-calorific liquid industrial wastes
- Grease washings and refinery residues
- Non-hazardous liquid organic waste streams
These liquids often contain solids, water fraction, or corrosive chemicals — all manageable with PH1’s engineered LAFR solutions.
Key Features
- ATEX-Certified Systems: Designed to Meet the Highest Safety Standards
- Optimized Flow Control: Ensures smooth, consistent flow of liquid AFR materials, preventing blockages and flow inconsistencies.

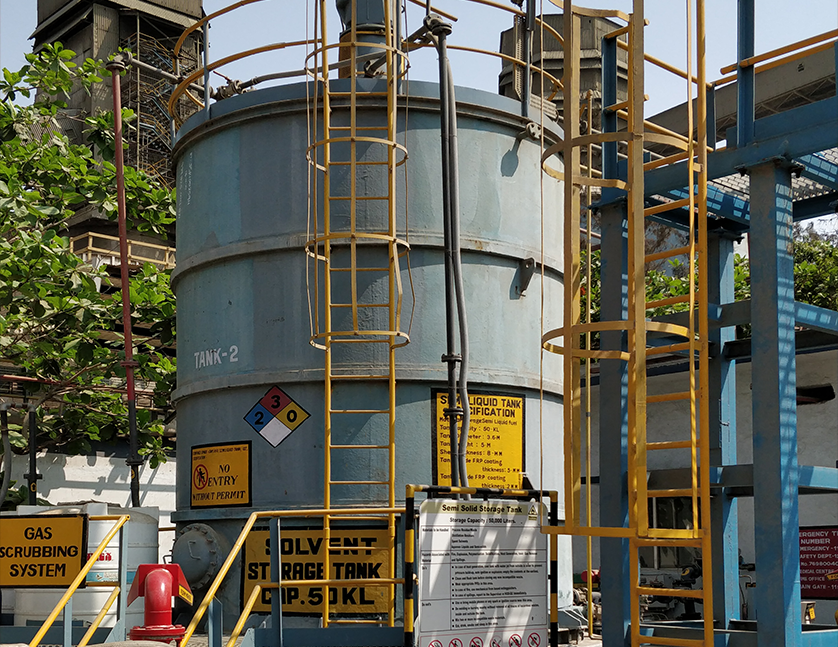

- Safe Handling: Incorporates high-quality storage tanks and transfer systems that safely handle the often-volatile liquid AFR.

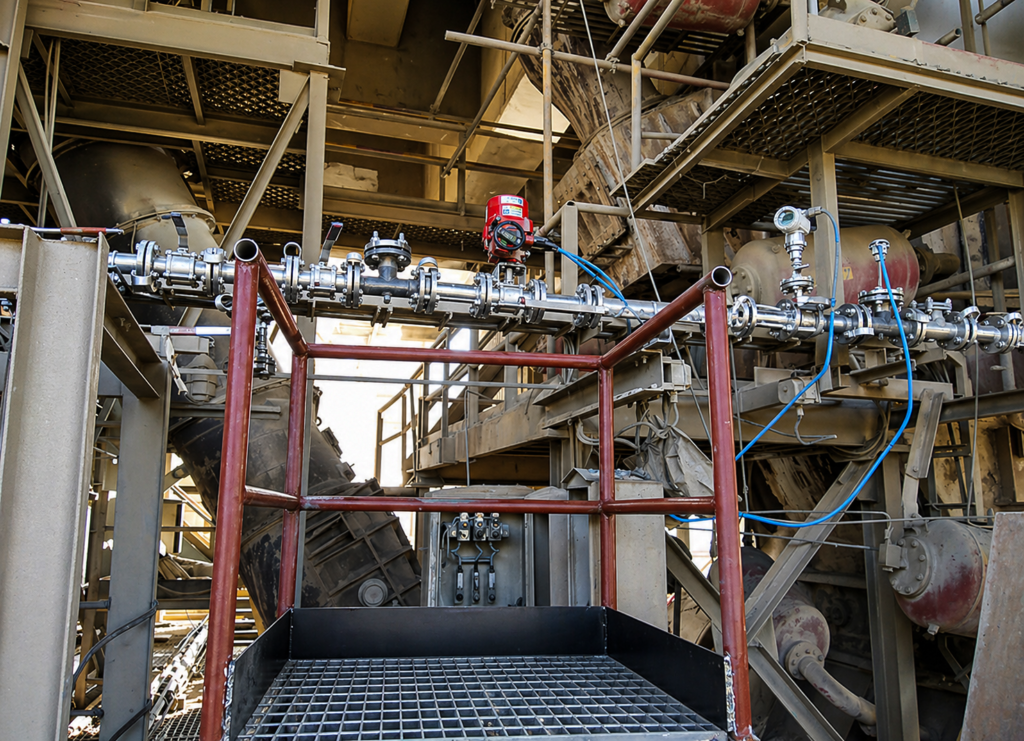

- Anti-Corrosive, Anti-Static Lined Pipes: Specialized pipelines that resist chemical attack and eliminate static buildup.

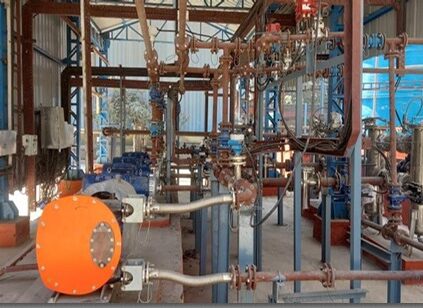

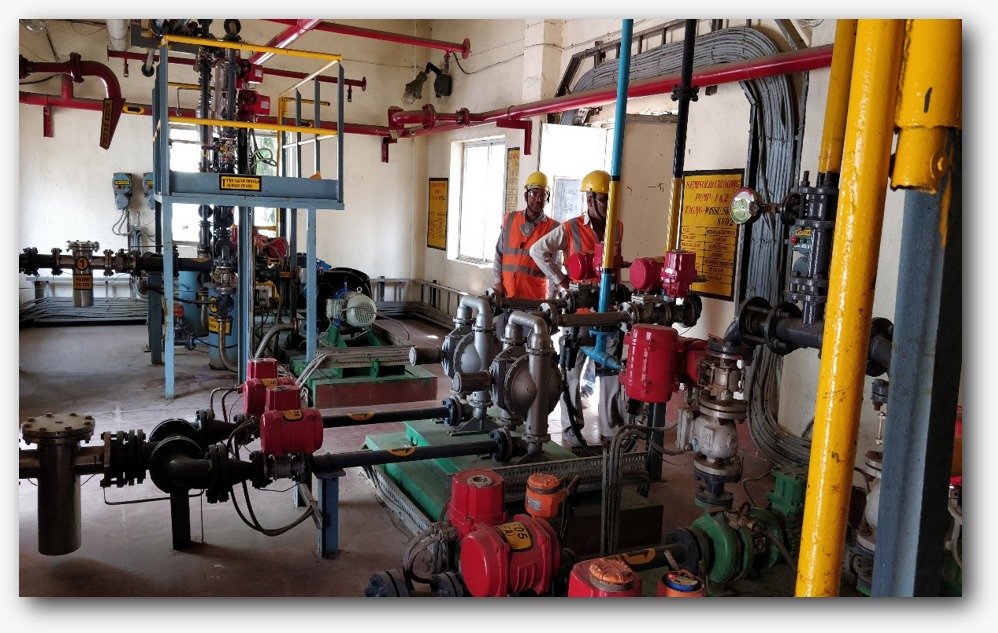

- Pumping Skids: Engineered pump skids designed for variable-viscosity, impurity-rich liquid wastes.
- Storage Tanks with Agitators: Tanks tailored for corrosive and settling-prone liquid wastes, with mixers for uniformity.
- Real-Time Monitoring: Equipped with sensors and control systems to monitor AFR quantity and quality, ensuring consistent performance.
- High Durability: Designed to withstand harsh industrial environments and extreme conditions typical of liquid AFR systems.
- Easy Integration: Can be integrated with existing systems for seamless operation without disruption.
Benefits
- Increased Sustainability: Replaces fossil fuels with eco-friendly liquid AFR, helping industries lower their carbon footprint and contribute to sustainability goals.
- Cost Efficiency: By utilizing liquid AFR, industries can significantly reduce fuel costs and reliance on traditional energy sources.
- Operational Safety: Equipped with safety features, including leak detection, to ensure safe handling of liquid AFR.
- Reliability: Designed to operate continuously with minimal downtime, ensuring maximum efficiency and reducing maintenance costs.
- Credibility: Consistently performing proven technology successfully commissioned across more than 50 plants in India.
Typical Applications
- Cement Plants: Perfect for efficient alternative fuel management to replace fossil fuels.
- Power Plants: Helps power plants lower operational costs by using waste liquids as an energy source.
- Chemical Industries: Can be used to process industrial liquid waste as an alternative energy source.
